Case Overview:
At Medical Center, Pune, a complex forearm injury involving a Diaphyseal Segment Radius Simple Oblique Fracture and a Diaphyseal Segment Ulna Simple Oblique Fracture was successfully managed using advanced internal fixation techniques.
The procedure, performed by Surgeons team, achieved precise anatomical reduction and stable fixation — essential for restoring full forearm rotation, strength, and long-term functional stability.
To ensure optimal alignment and strong postoperative stability, the following implants were used Samay Surgical’s:

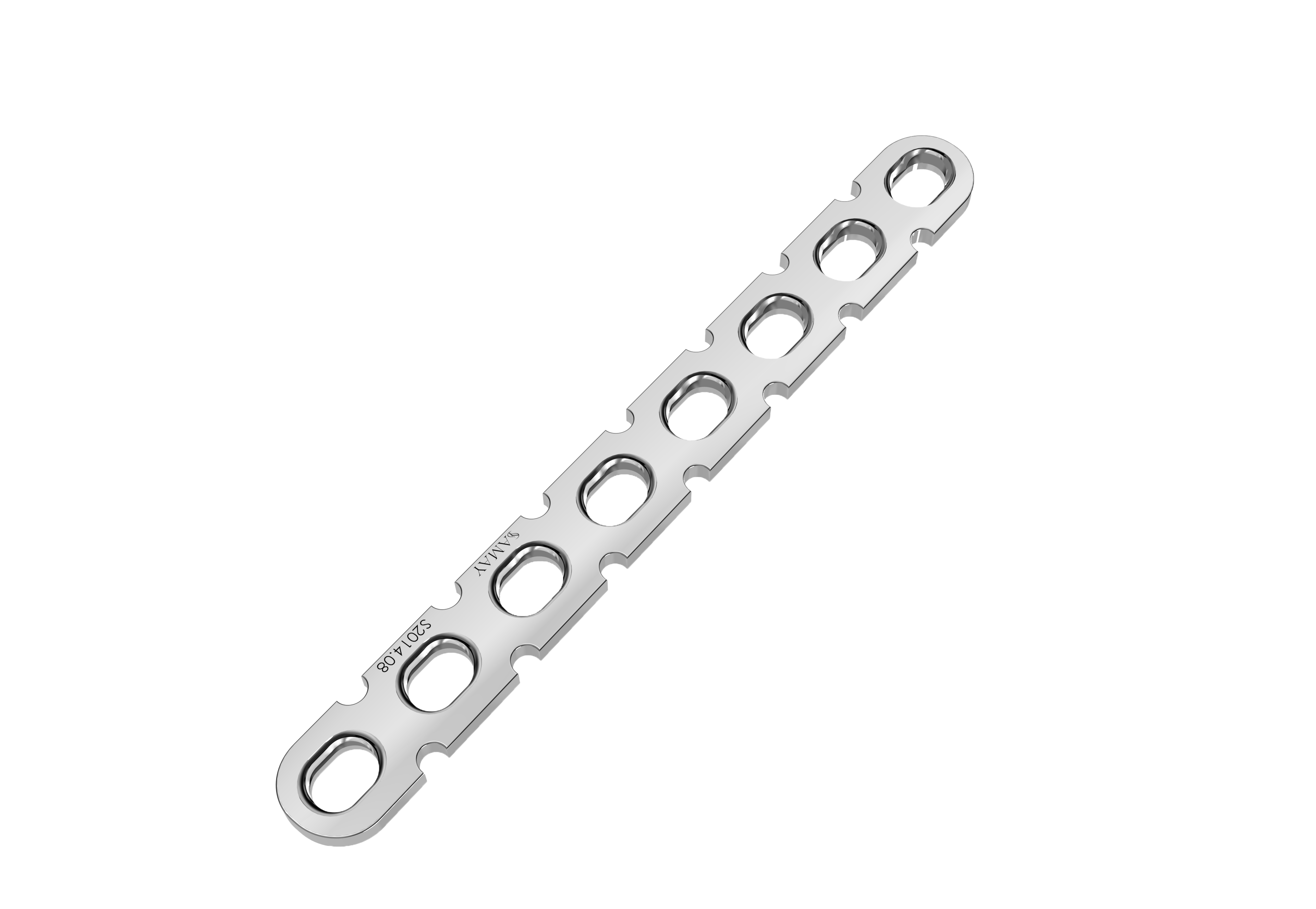

- Reconstruction Plate Straight D.C Hole

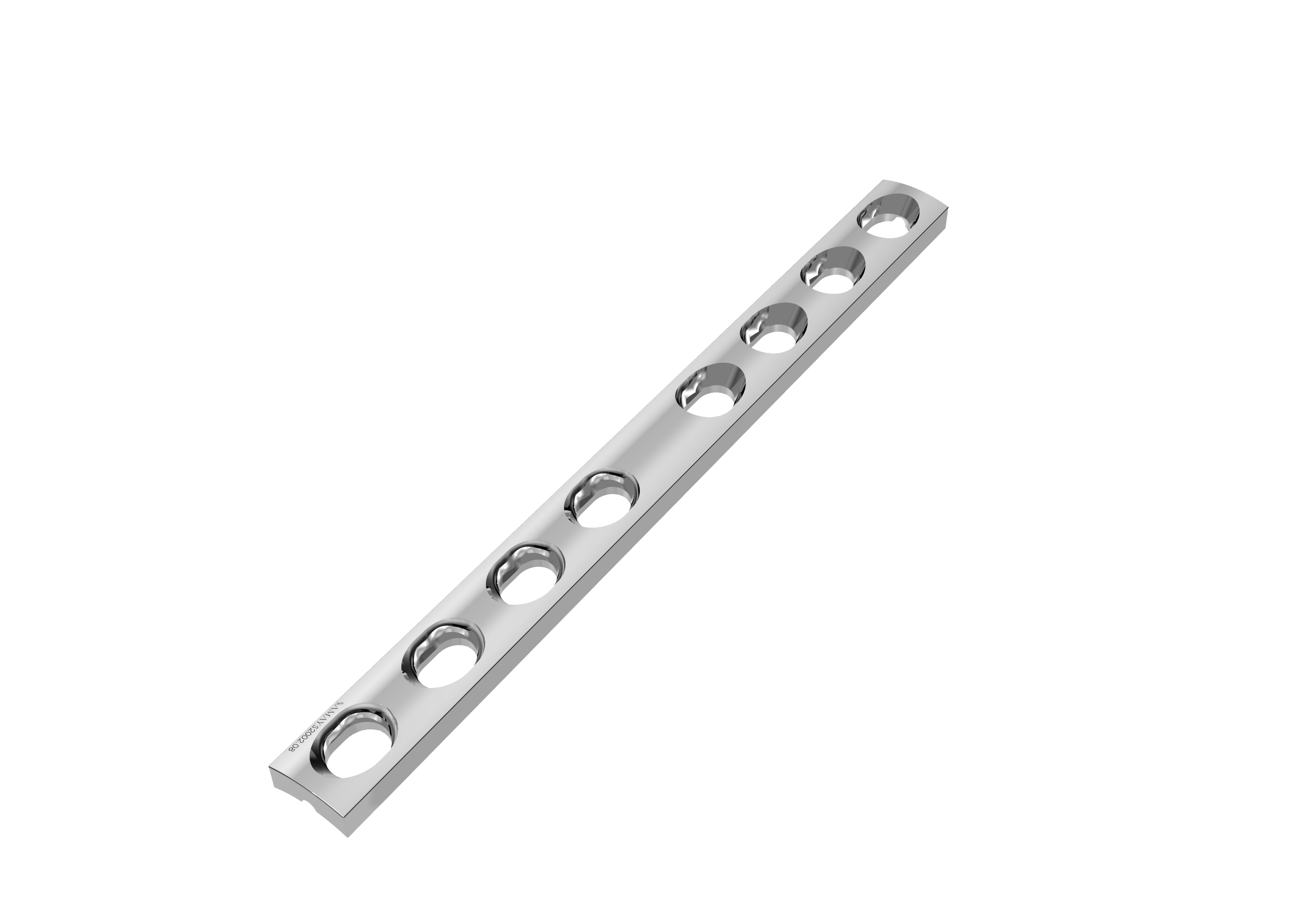

- Narrow Compression DCP Plate
This strategic implant combination provided excellent intraoperative control, allowing for a reliable fixation construct and supporting a faster, smoother recovery trajectory. The case reflects the growing excellence in orthopedic trauma management at medical center, Pune.
Case Description:
A 32-year-old patient, weighing 73 kg, presented with a significant injury to the mid-shaft region of both forearm bones. To restore alignment, stability, and functional rotation, the surgical team proceeded with internal fixation.
Using a combination of a Samay Surgical’s Reconstruction Plate Straight D.C Hole and a Narrow Compression DCP Plate, the surgeons achieved accurate anatomical reduction and strong stabilization. This construct allowed early functional movement and supported a smooth and steady recovery.
Preoperative Findings:

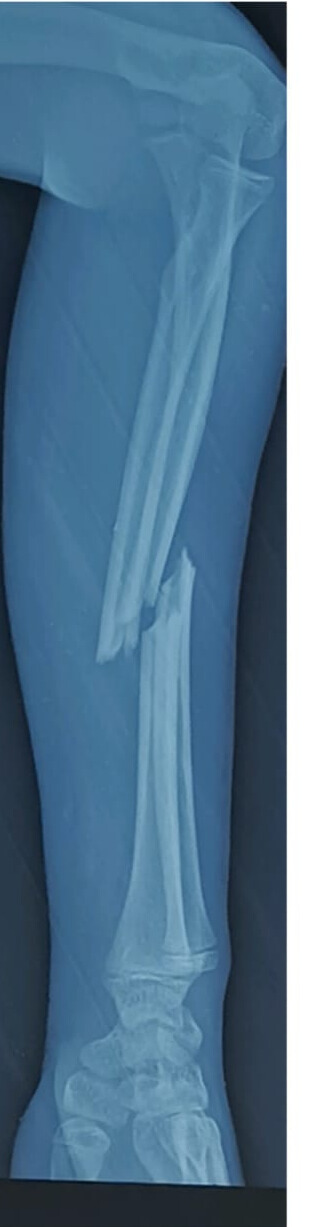

The X-ray shows a displaced diaphyseal both-bone forearm fracture with an oblique fracture pattern of the radius and ulna.
Surgical Procedure:
The surgery was performed using high-quality implants and precision instruments from Samay Surgical. The fixation involved a Reconstruction Plate Straight D.C Hole 3.5mm (6-Hole) and a Narrow Compression DCP Plate 4.5mm (7-Hole), both engineered by Samay Surgical for optimal contouring and strong mid-shaft stabilization.
With the support of Samay Surgical’s reliable instrument set, the surgical team achieved accurate anatomical alignment and secure plate fixation. The instruments ensured smooth handling and precise screw placement, contributing to a stable and rigid construct throughout the procedure.
The combination of Samay Surgical’s implants and instruments resulted in excellent intraoperative control, enabling early functional movement and ensuring a smooth procedure with no complications.
Postoperative image & Care:

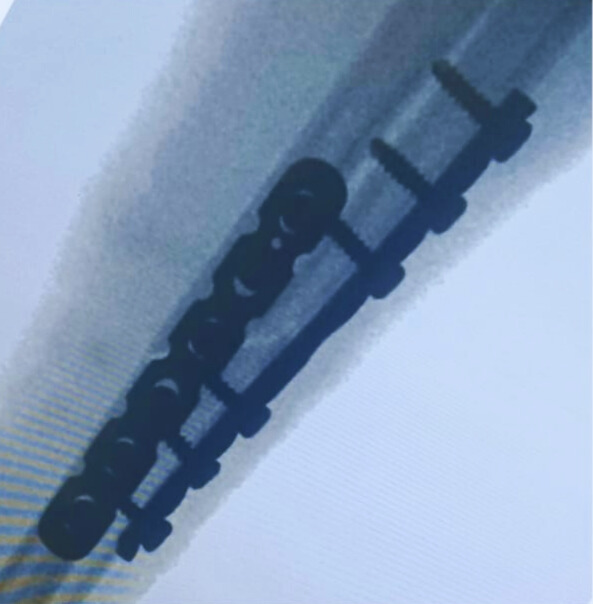

The X-ray shows mid-shaft fixation of both forearm bones with plates, so post-operative care focuses on protecting the construct while promoting early controlled mobility. The limb is kept immobilized initially to reduce swelling and safeguard the fixation. Pain control and dressing care are maintained, while gentle finger, wrist, and elbow movements are started early to avoid stiffness. Progressive forearm rotation and strengthening exercises are introduced once initial healing is confirmed on follow-up X-rays. The patient should avoid lifting weight or applying torsional stress until radiographs show stable callus formation and advancing union.
Recovery:
The patient showed steady recovery with maintained alignment. Early wrist and elbow movements improved mobility, while gradual strengthening restored forearm function. No complications were observed, and healing progressed well with good return to daily activities.
Implant specification:
| Implant | Material | Size |
|---|---|---|
| Reconstruction Plate Straight D.C Hole 3.5mm | SS 316L | 6 Hole |

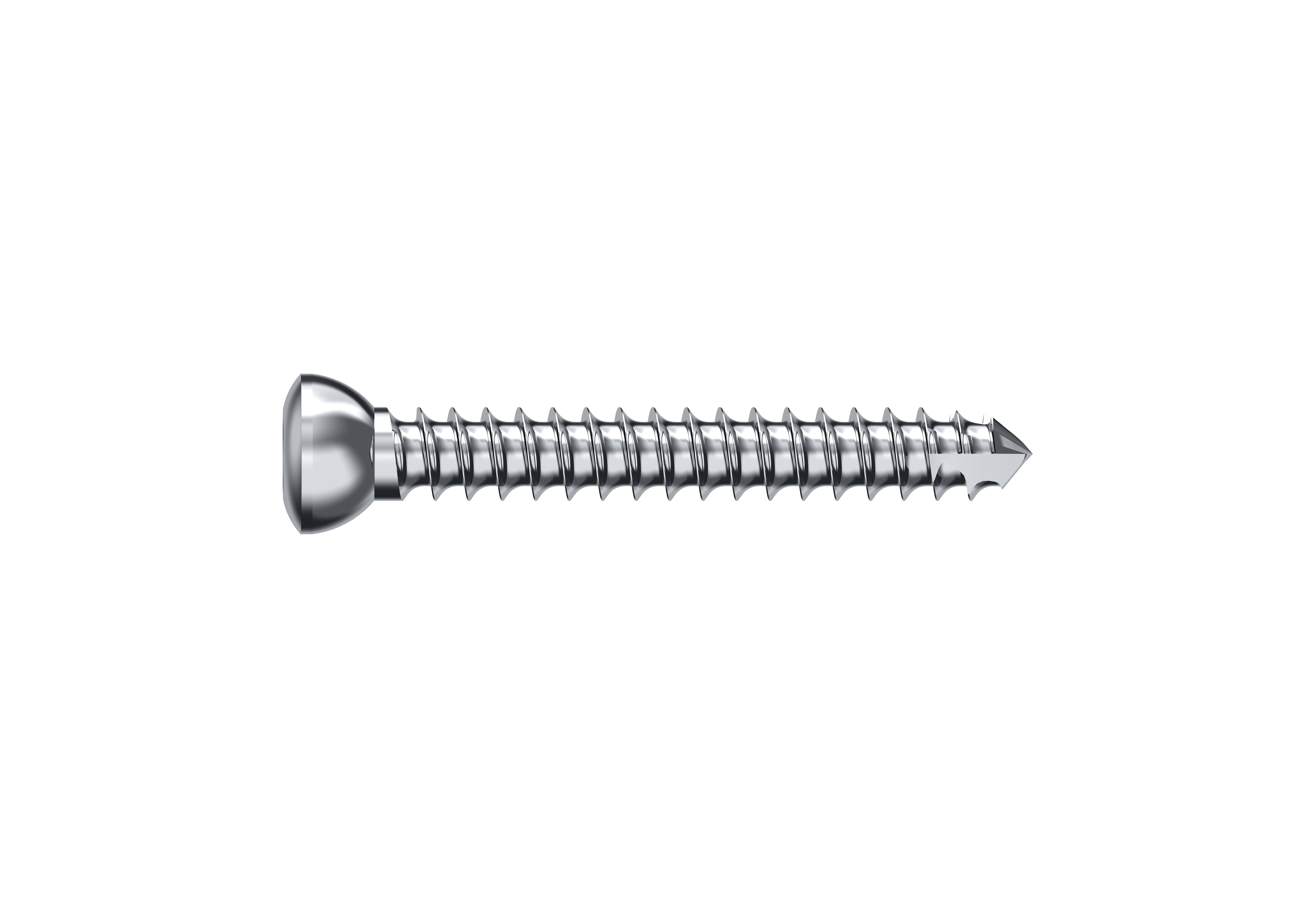

| 3.5mm Cortex Screw (Pitch 1.25) | SS 316L | 30mm |
| Narrow Compression DCP Plate 4.5mm | SS 316L | 7 Hole |
| 4.5mm Cortex Screw | SS 316L | 32mm |
Key Features of Implants:
| Reconstruction Plate Straight D.C Hole | Narrow Compression DCP Plate |
|---|---|
| Contourable design for easy shaping | Narrow profile for better anatomical fit |
| Dynamic compression holes for improved healing | Strong dynamic compression support |
| Lightweight, strong, and low soft-tissue irritation | High mechanical stability |

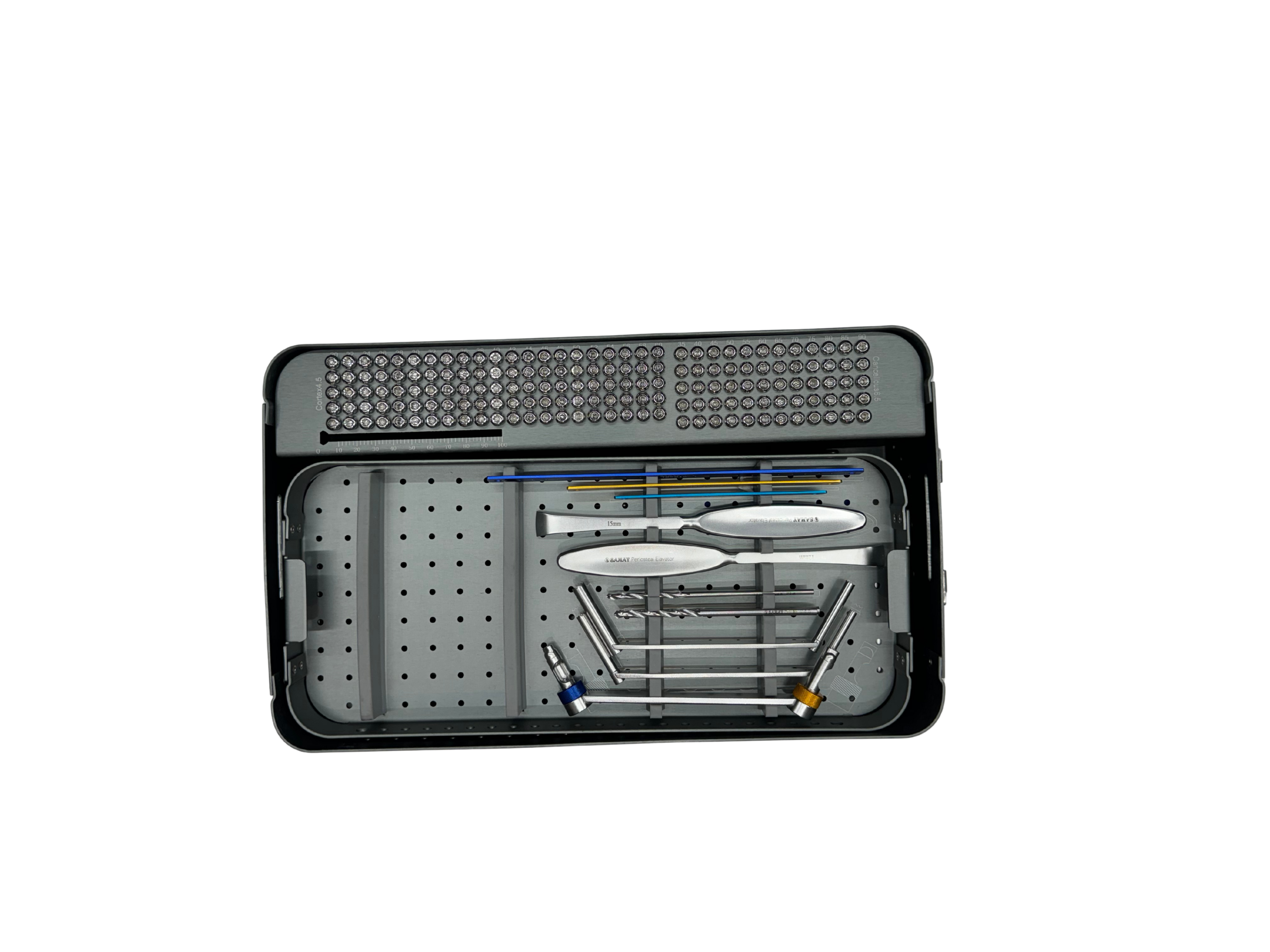

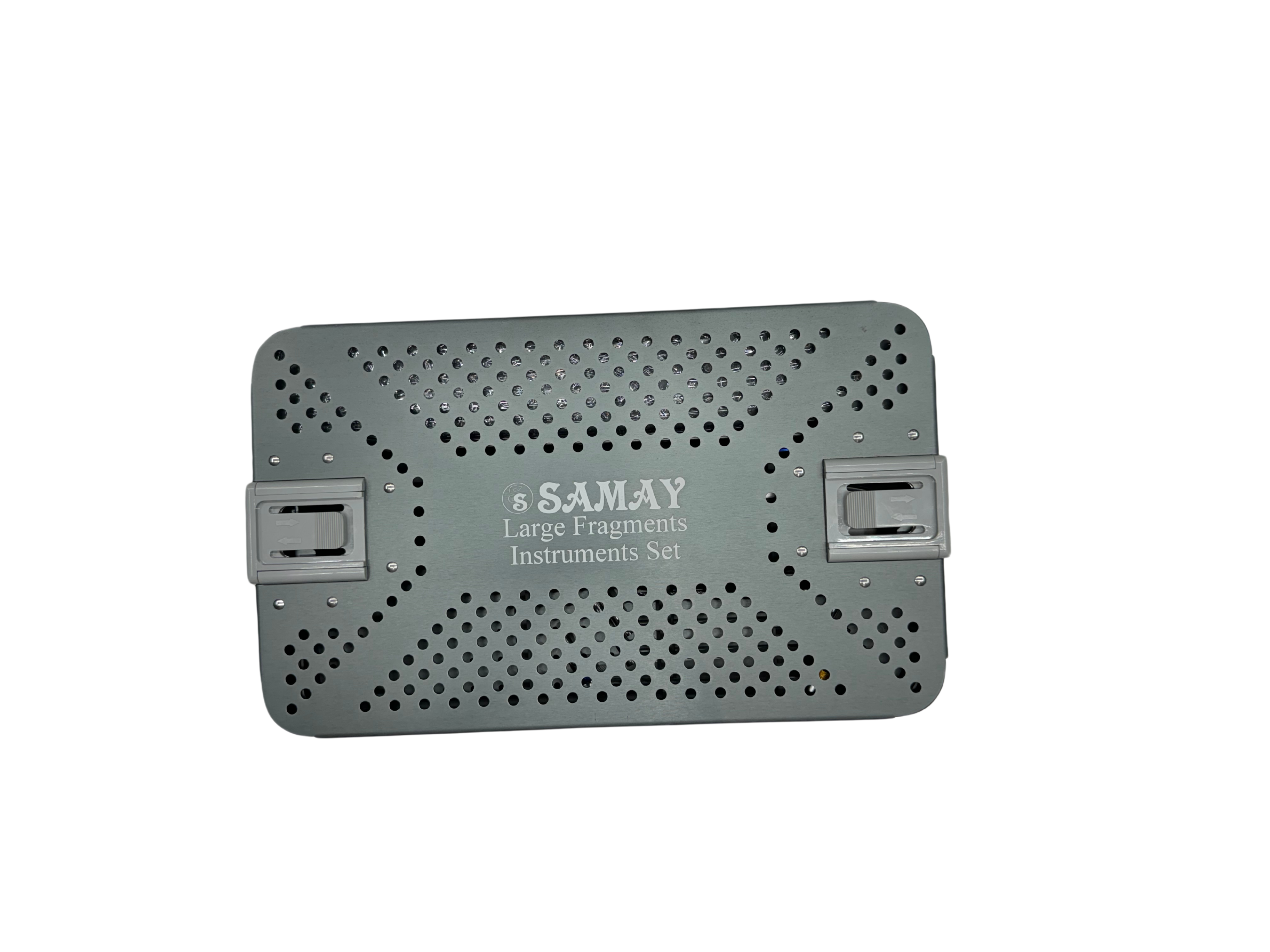

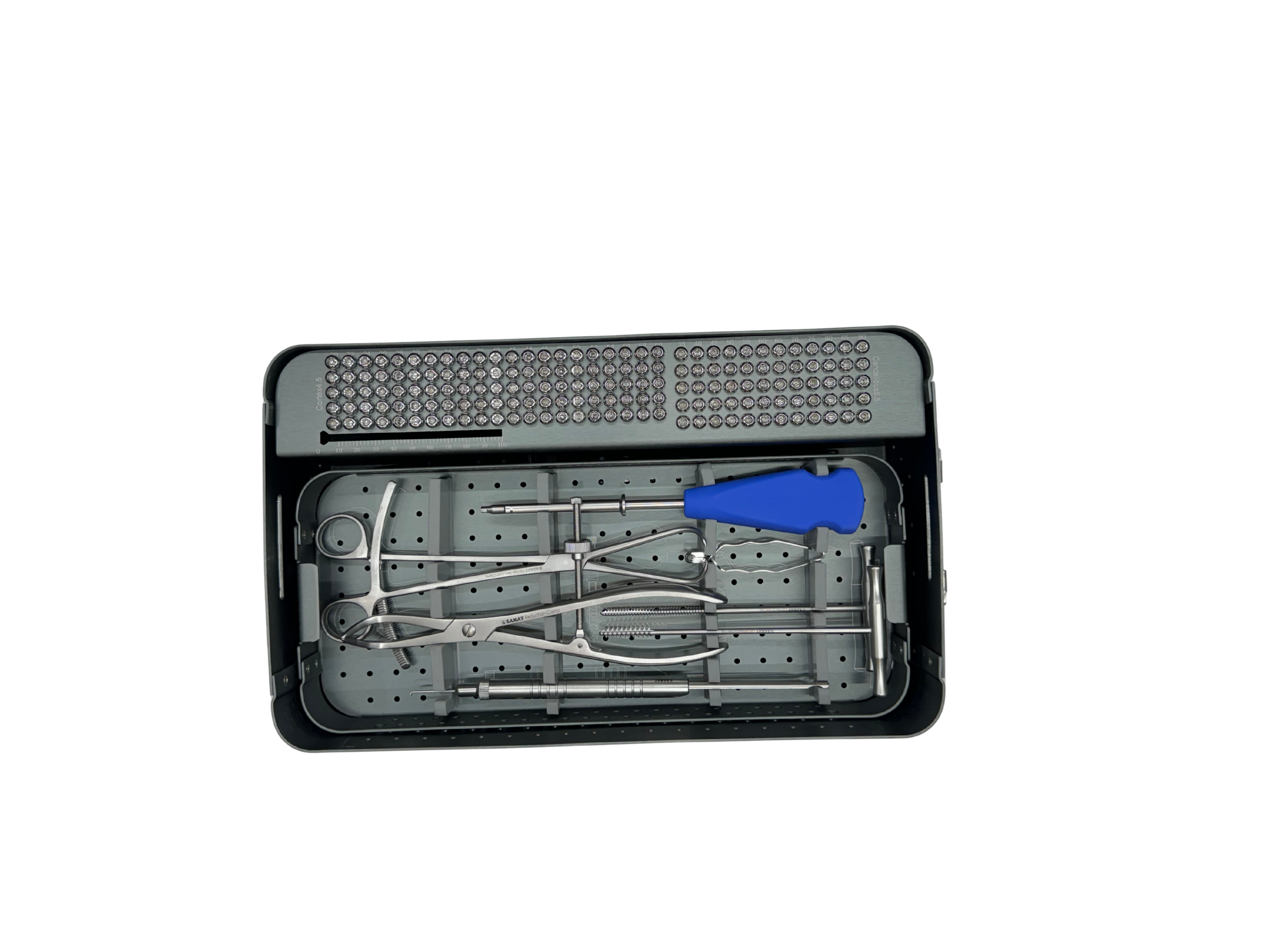

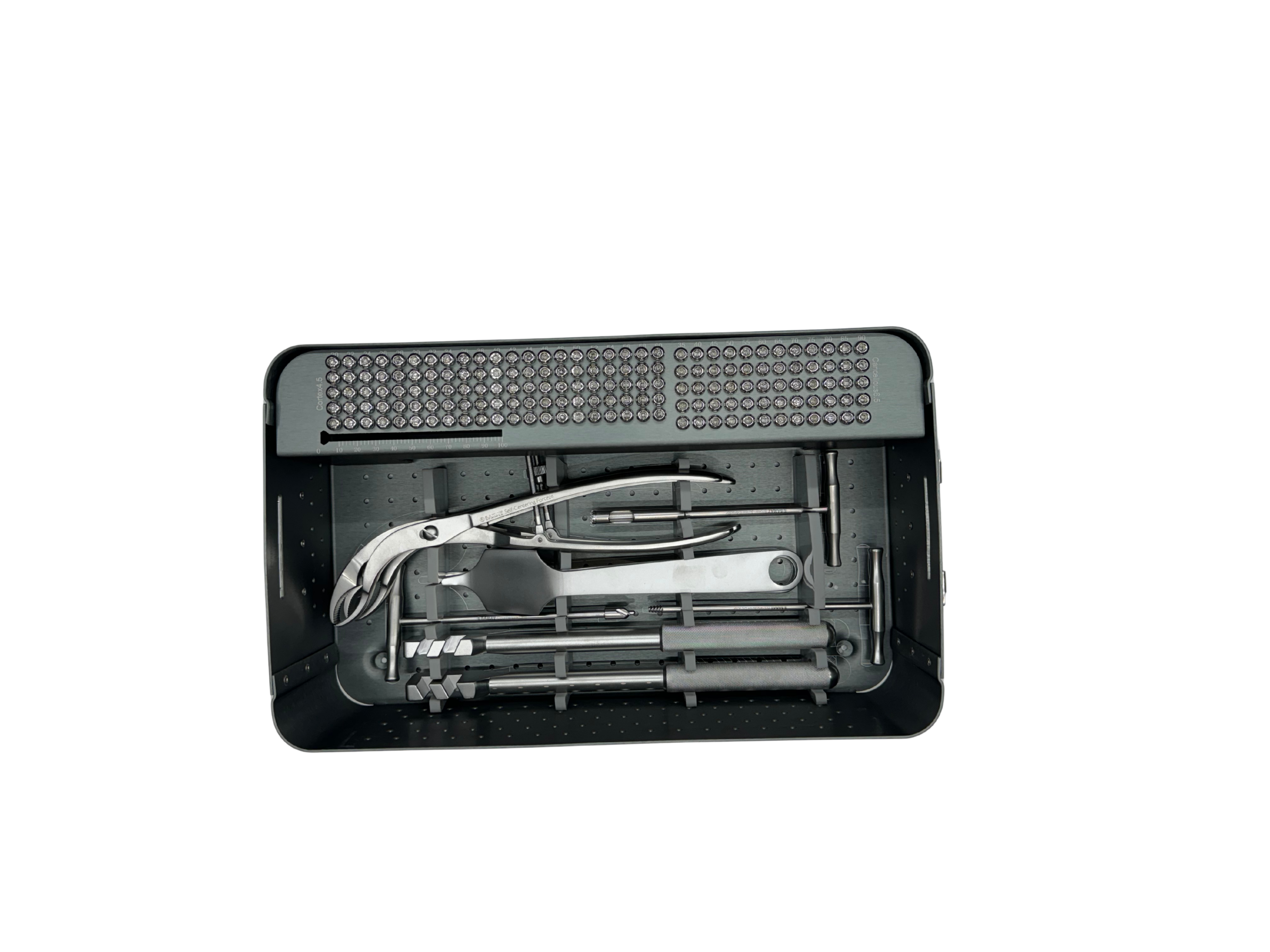

Instrument set – Large Fragment Instrument Set:
Instrument set – Small Fragment Instrument Set:
Clinical Outcome:
At the 6-week follow-up strong healing progression with maintained alignment and stable fixation. The patient regained excellent functional movement without any signs of infection, hardware irritation, or delayed union. This case highlights the reliability and performance of Samay Surgical’s orthopedic implants and instruments in achieving successful outcomes in trauma surgery.
Surgeon feedback:
The operating surgeon reported excellent handling and contouring capability with Samay Surgical’s Reconstruction Plate 3.5mm (6-Hole) and Narrow Compression DCP Plate 4.5mm (7-Hole). The instrument set provided smooth operability, allowing precise screw placement and stable fixation. The surgeon noted that the implants offered strong construct stability, contributing to early mobilization and a complication-free recovery.
Frequently Asked Questions:
1. What type of injury was treated in this case?
This case involved fractures in the mid-shaft region of both forearm bones, requiring stable internal fixation for proper healing and restoration of functional rotation.
2. Why were two different plates used?
Each plate serves a specific biomechanical purpose:
- The 3.5mm Reconstruction Plate offers excellent contour ability for anatomical fit.
- The 4.5mm Narrow DCP Plate provides high rigidity for long-bone stabilization.
Together, they create a balanced and strong fixation construct.
3. What raw materials are Samay Surgical implants made from?
Samay Surgical manufactures implants using medical-grade Stainless Steel 316L and Titanium Grade 5, ensuring high strength, corrosion resistance, and international biocompatibility standards.
4. How is the quality of Samay Surgical’s instrument set?
The instrument set is engineered for precision, smooth handling, and durability, ensuring accurate screw placement and effortless plate contouring during surgery. All instruments undergo strict quality checks and comply with global standards.
5. How does the precision of the instrument set contribute to surgical outcomes?
High-quality instruments ensure smooth plate contouring, accurate screw placement, and minimal surgical time—all improving the success of the procedure.
6. Were there any complications after surgery?
No. Follow-up assessments showed proper healing, stable implant positioning, and no issues such as infection or hardware irritation.
7. How long did healing take?
By the 6-week follow-up, radiographs showed excellent healing progression, allowing the patient to resume functional activities.
8. How did the surgeon rate Samay Surgical implants and instruments?
The surgeon appreciated the excellent handling, contour ability, and strong mechanical stability of the implants. The instrument set also allowed for smooth, precise, and efficient surgical execution.
9. Are Samay Surgical implants suitable for complex trauma cases?
Yes. Their mechanical strength, precision manufacturing, and compatibility with standard instruments make them ideal for both simple and complex fracture patterns.
10. Is Samay Surgical implants CE or ISO certified?
Yes. Samay Surgical implants comply with ISO standards and are manufactured under CE-guided processes, ensuring high global quality.
